JJ Tools
4CREG 010 0005 040
| Diameter (D x R) | Length of Cut (L1) | Effective Length (L2) | Overall Length (L) | Shank Diameter (d) |
|---|---|---|---|---|
| 1mm x R0.05 | 1.2mm | 4mm | 45mm | 4mm |
Login to view price
Filter By
Filter By

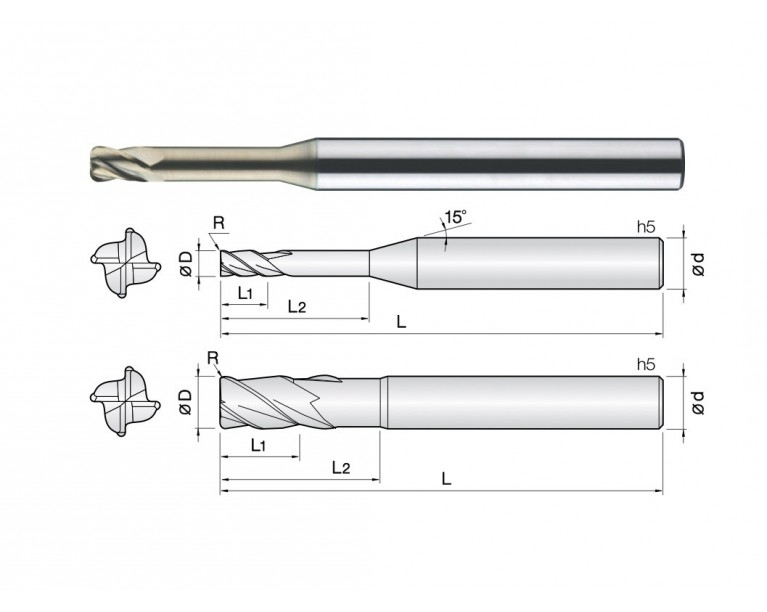

4CREG - 4 Flutes Rib Corner Radius End Mills
- Endmills for various work materials (HRC52), Pre-hardened steel, carbon steel, mold steel.
- Optimum for various work materials by JCRO coating.
- High precise edge tolerance.
- Designed for minimizing edge chipping by corner R shape.
- Various corner R and flute length for wide range application.
- Minimize fracturing by high TRS fine WC grade.
JJ Tools
4CREG 010 0005 060
| Diameter (D x R) | Length of Cut (L1) | Effective Length (L2) | Overall Length (L) | Shank Diameter (d) |
|---|---|---|---|---|
| 1mm x R0.05 | 1.2mm | 6mm | 45mm | 4mm |
Login to view price
JJ Tools
4CREG 010 0005 080
| Diameter (D x R) | Length of Cut (L1) | Effective Length (L2) | Overall Length (L) | Shank Diameter (d) |
|---|---|---|---|---|
| 1mm x R0.05 | 1.2mm | 8mm | 45mm | 4mm |
Login to view price
JJ Tools
4CREG 010 0005 100
| Diameter (D x R) | Length of Cut (L1) | Effective Length (L2) | Overall Length (L) | Shank Diameter (d) |
|---|---|---|---|---|
| 1mm x R0.05 | 1.2mm | 10mm | 50mm | 4mm |
Login to view price
JJ Tools
4CREG 010 0005 120
| Diameter (D x R) | Length of Cut (L1) | Effective Length (L2) | Overall Length (L) | Shank Diameter (d) |
|---|---|---|---|---|
| 1mm x R0.05 | 1.2mm | 12mm | 50mm | 4mm |
Login to view price
JJ Tools
4CREG 010 0005 160
| Diameter (D x R) | Length of Cut (L1) | Effective Length (L2) | Overall Length (L) | Shank Diameter (d) |
|---|---|---|---|---|
| 1mm x R0.05 | 1.2mm | 16mm | 50mm | 4mm |
Login to view price
JJ Tools
4CREG 010 0005 200
| Diameter (D x R) | Length of Cut (L1) | Effective Length (L2) | Overall Length (L) | Shank Diameter (d) |
|---|---|---|---|---|
| 1mm x R0.05 | 1.2mm | 20mm | 50mm | 4mm |
Login to view price
JJ Tools
4CREG 010 001 040
| Diameter (D x R) | Length of Cut (L1) | Effective Length (L2) | Overall Length (L) | Shank Diameter (d) |
|---|---|---|---|---|
| 1mm x R0.1 | 1.2mm | 4mm | 45mm | 4mm |
Login to view price
JJ Tools
4CREG 010 001 060
| Diameter (D x R) | Length of Cut (L1) | Effective Length (L2) | Overall Length (L) | Shank Diameter (d) |
|---|---|---|---|---|
| 1mm x R0.1 | 1.2mm | 6mm | 45mm | 4mm |
Login to view price
JJ Tools
4CREG 010 001 080
| Diameter (D x R) | Length of Cut (L1) | Effective Length (L2) | Overall Length (L) | Shank Diameter (d) |
|---|---|---|---|---|
| 1mm x R0.1 | 1.2mm | 8mm | 45mm | 4mm |
Login to view price
JJ Tools
4CREG 010 001 100
| Diameter (D x R) | Length of Cut (L1) | Effective Length (L2) | Overall Length (L) | Shank Diameter (d) |
|---|---|---|---|---|
| 1mm x R0.1 | 1.2mm | 10mm | 50mm | 4mm |
Login to view price
JJ Tools
4CREG 010 001 120
| Diameter (D x R) | Length of Cut (L1) | Effective Length (L2) | Overall Length (L) | Shank Diameter (d) |
|---|---|---|---|---|
| 1mm x R0.1 | 1.2mm | 12mm | 50mm | 4mm |
Login to view price
JJ Tools
4CREG 010 001 160
| Diameter (D x R) | Length of Cut (L1) | Effective Length (L2) | Overall Length (L) | Shank Diameter (d) |
|---|---|---|---|---|
| 1mm x R0.1 | 1.2mm | 16mm | 50mm | 4mm |
Login to view price
JJ Tools
4CREG 010 001 200
| Diameter (D x R) | Length of Cut (L1) | Effective Length (L2) | Overall Length (L) | Shank Diameter (d) |
|---|---|---|---|---|
| 1mm x R0.1 | 1.2mm | 20mm | 50mm | 4mm |
Login to view price
JJ Tools
4CREG 010 002 040
| Diameter (D x R) | Length of Cut (L1) | Effective Length (L2) | Overall Length (L) | Shank Diameter (d) |
|---|---|---|---|---|
| 1mm x R0.2 | 1.2mm | 4mm | 45mm | 4mm |
Login to view price
JJ Tools
4CREG 010 002 060
| Diameter (D x R) | Length of Cut (L1) | Effective Length (L2) | Overall Length (L) | Shank Diameter (d) |
|---|---|---|---|---|
| 1mm x R0.2 | 1.2mm | 6mm | 45mm | 4mm |
Login to view price
JJ Tools
4CREG 010 002 080
| Diameter (D x R) | Length of Cut (L1) | Effective Length (L2) | Overall Length (L) | Shank Diameter (d) |
|---|---|---|---|---|
| 1mm x R0.2 | 1.2mm | 8mm | 45mm | 4mm |
Login to view price
JJ Tools
4CREG 010 002 100
| Diameter (D x R) | Length of Cut (L1) | Effective Length (L2) | Overall Length (L) | Shank Diameter (d) |
|---|---|---|---|---|
| 1mm x R0.2 | 1.2mm | 10mm | 50mm | 4mm |
Login to view price
JJ Tools
4CREG 010 002 120
| Diameter (D x R) | Length of Cut (L1) | Effective Length (L2) | Overall Length (L) | Shank Diameter (d) |
|---|---|---|---|---|
| 1mm x R0.2 | 1.2mm | 12mm | 50mm | 4mm |
Login to view price
JJ Tools
4CREG 010 002 160
| Diameter (D x R) | Length of Cut (L1) | Effective Length (L2) | Overall Length (L) | Shank Diameter (d) |
|---|---|---|---|---|
| 1mm x R0.2 | 1.2mm | 16mm | 50mm | 4mm |
Login to view price
JJ Tools
4CREG 010 002 200
| Diameter (D x R) | Length of Cut (L1) | Effective Length (L2) | Overall Length (L) | Shank Diameter (d) |
|---|---|---|---|---|
| 1mm x R0.2 | 1.2mm | 20mm | 50mm | 4mm |
Login to view price
JJ Tools
4CREG 010 003 040
| Diameter (D x R) | Length of Cut (L1) | Effective Length (L2) | Overall Length (L) | Shank Diameter (d) |
|---|---|---|---|---|
| 1mm x R0.3 | 1.2mm | 4mm | 45mm | 4mm |
Login to view price
JJ Tools
4CREG 010 003 060
| Diameter (D x R) | Length of Cut (L1) | Effective Length (L2) | Overall Length (L) | Shank Diameter (d) |
|---|---|---|---|---|
| 1mm x R0.3 | 1.2mm | 6mm | 45mm | 4mm |
Login to view price
JJ Tools
4CREG 010 003 080
| Diameter (D x R) | Length of Cut (L1) | Effective Length (L2) | Overall Length (L) | Shank Diameter (d) |
|---|---|---|---|---|
| 1mm x R0.3 | 1.2mm | 8mm | 45mm | 4mm |
Login to view price
